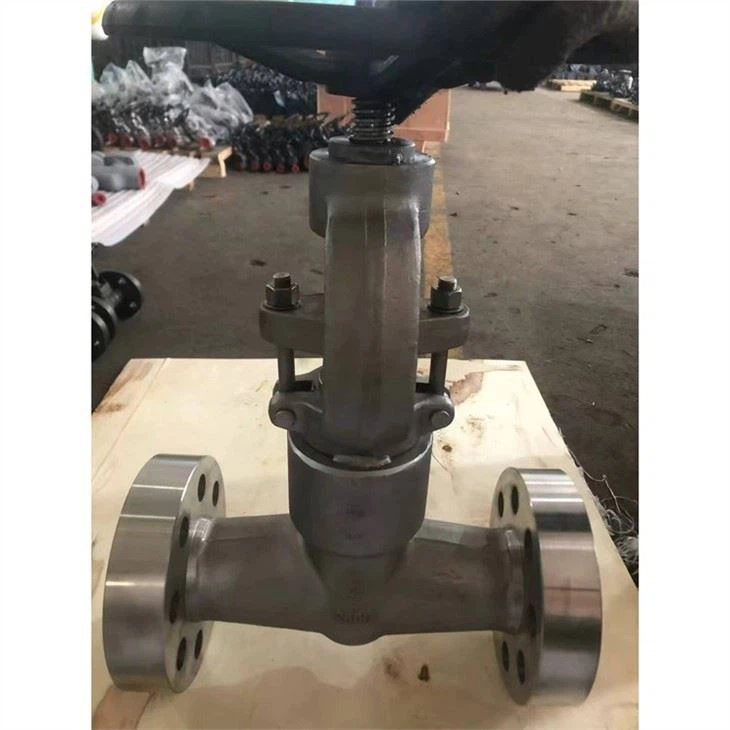

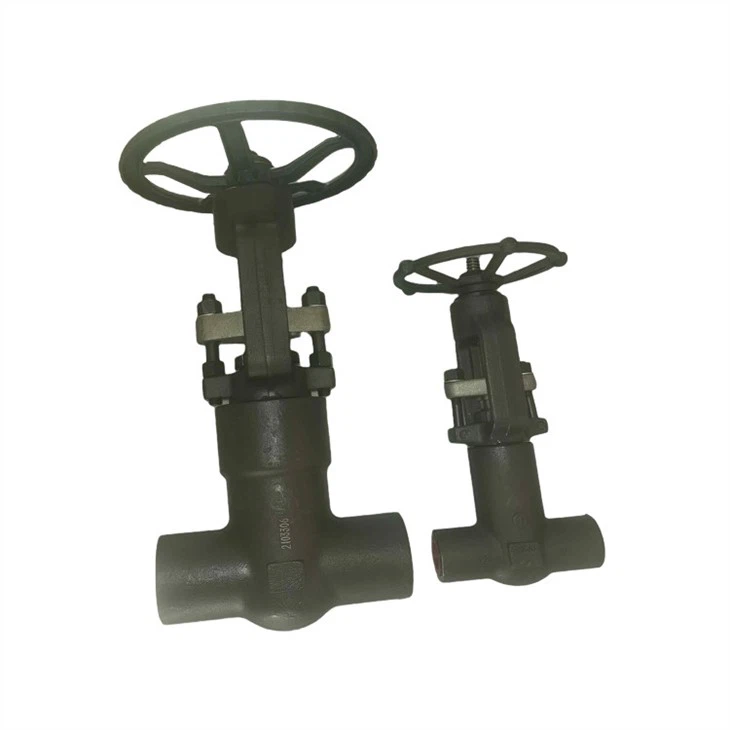

4500LB Rooj Vag Valve
Kev piav qhia& Nta
4500LB forged steel rooj vag li qub ua rau lub siab foob bonnet tsim, nrog ib txoj xov thiab siab foob bonnet sib koom tes.
● Forged Steel, Alloy Steel, Hlau Stainless
● Tag nrho Chaw Nres Nkoj lossis Tsawg Chaw Nkag
Tend Txuas ntxiv kav yog avaialble
● Lub Cim Ntshav Bonnet
● Xauv Cov Ntaus Khoom thaum thov
● Raug chaw rau NACE MR0175 thaum thov
Cov Lus Qhia Tshwj Xeeb
Loj Me | Cov Khoom Siv Lub Cev |
1/2" -2" DN15-DN50 | A105, LF2, F11, F22, F304 (L), F316 (L), Alloy 20, F51, Monel thiab lwm yam. |
Siab Ntsuam Xyuas | Khoom siv npoo |
Class4500 | F6a (HF), F304 (L), F316 (L), F51 thiab lwm yam. |
Xaus Kev Txuas Lus | Rooj Tog Khoom |
BW, NPT, BS, RF, SW | F6a (HF), F304 (L), F316 (L), F51 thiab lwm yam. |
Qauv Qauv | Qia Cov Khoom Siv |
Puv Chaw Nres Nkoj, OS& Y, Bolted Bonnet / Siab Seal Bonnet | SS410, F304 (L), F316 (L), F51 thiab lwm yam. |
Kev Xaiv Tus Thawj Coj | Tus Qauv Tsim |
Xuas Tes | API602 |
Kub Nrau Ntau Yam | Fim ntsej muag li ntsej muag |
-196℃~650℃ | ASME B16.10 |
Cov Qauv Sib Txuas | Xeem Txuj |
Flange Drilling: ASME B16.5 Butt Weld: ASME B16.25 Qhov (socket) Weld: ASME B16.11 | API 598 |
Lub Hom | DAGO lossis OEM |
Kuaj | 100% kom muaj nuj nqis kuaj ua ntej khoom xa tuaj |
Lav | 12 lub hlis txij li hnub ntawm cov zaub mov xa tuaj lossis Tham tau |
MOQ | 1 Txheej |
Qauv | Muaj |
Xim | Neeg yuav khoom los yog chaw tsim tshuaj paus vim |
Ntim | Lub hnab yas qhwv sab hauv, seaworthy ntoo rooj sab nraud |
Daim ntawv pov thawj | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Zeb Xeem Ntawv Pov Thawj |
Lub Tebchaws ntawm Keeb Kwm | Zhejiang, Suav |
HS Code | 848180 (universal), 8481804090 (Suav Teb) |
Chaw nres nkoj | Shanghai lossis Ningbo |
Cov ntsiab lus them nqi | T / T, L / C, Western Union |
Cim npe nrov: 4500lb rooj vag valve, Suav teb, cov chaw muag khoom, chaw tsim khoom
